JS5501D Intelligent Power Meter
JS5501D Intelligent Power Meter is composed of accurate electric parameter module, wireless module, 32-bit ARM chip, high-quality relay, memory chip and industrial 485 communication chip. Compared with JS5501C, in addition to the six parameter data collection functions, the power supply separation function is added.
-

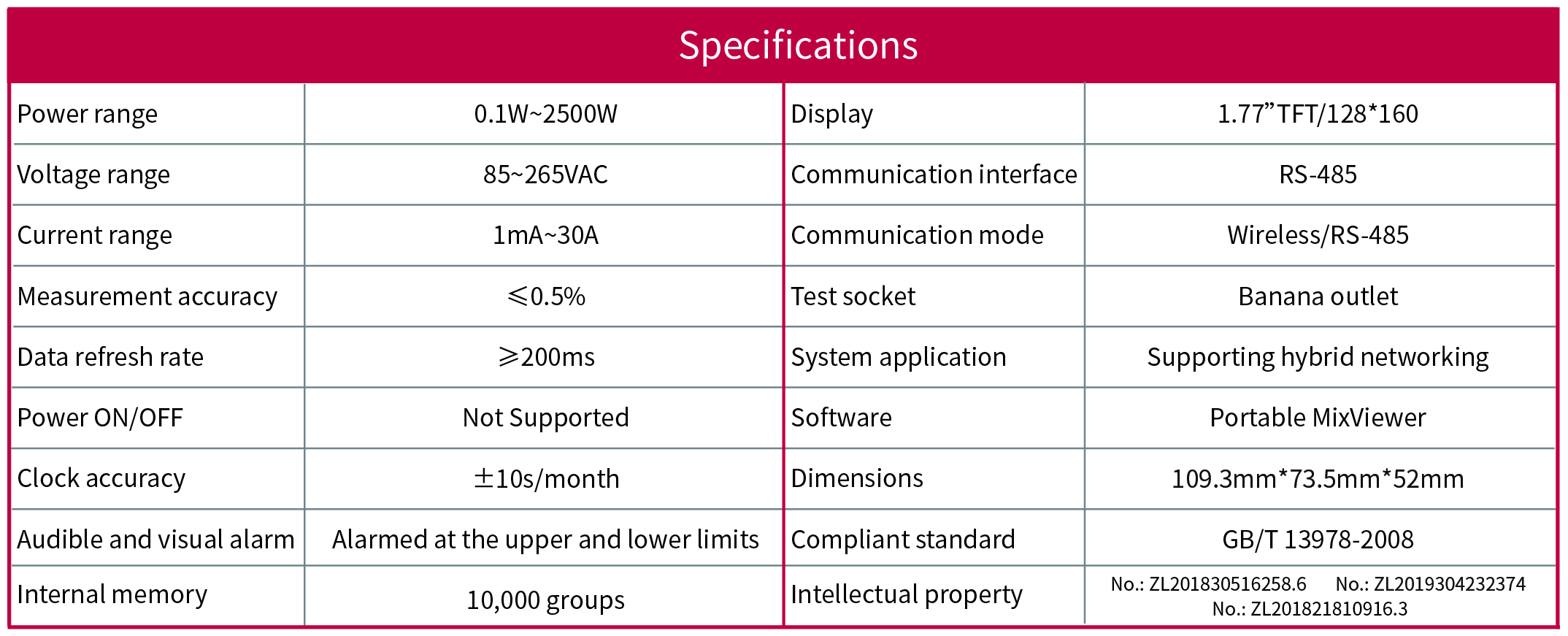

Power
0.1W~2500W
≤0.5% -
Voltage
85~ 265VAC
≤0.5% -
Current
1mA~10A
1mA~16A -
Data memory
200 thousand groups
-
Precision clock
±10s/month
| Function | Extended application |
|---|---|
| Electrical parameter measurement |
JS5301A Function extension box of connection between robot
and measurement parameter judgment
|
| Separation of power supply |
JS5302A Wireless barcode scanner
*Supporting one barcode scanner -to-one Power Meter and
one barcode scanner -to-multiple Power Meters
|
| Acousto-optic alarm |
JS5303A Power ON-OFF function extension box
*Supporting on-off ≥ 10 million times
|
| Communication storage | JS5401A Ambient temperature and humidity probe |
| Precision clock |
JS5403A Three-phase electrical parameter measurement extension
module
|
